Plot ratio, known officially as Gross Plot Ratio (GPR), equals Gross Floor Area divided by site area. To find your site’s maximum buildable floor area, multiply the site area by the GPR listed on the URA Master Plan for that parcel. That figure is a ceiling, not a guarantee. Height controls, setbacks, and technical exclusions almost always trim the number down before it becomes a real building.
TL;DR:
- The maximum GFA is calculated by multiplying the site area by the GPR, but height limits and technical setbacks often significantly reduce this theoretical figure.
- The GPR listed in the Master Plan is an upper bound, and planning restrictions like height caps, setbacks, and overlays can prevent reaching the full ratio in practice.
- Exclusions such as open spaces, service ducts, and certain carparks must be carefully deducted from the GFA calculation to avoid overstating buildable floor area.
- Confirming site boundaries, unit consistency, and current regulatory GPR values is essential before estimating maximum GFA and entering design stages.
- Engaging a professional consultant early helps accurately model the GFA, navigate exclusions, and ensure submission compliance, reducing costly revisions.
Table of Contents
- What plot ratio calculation actually measures in Singapore
- How do you calculate plot ratio and maximum GFA?
- Why the Master Plan GPR rarely equals your achievable GFA
- GFA exclusions that change the real number
- Where to verify official plot ratio data
- Feasibility checklist before you commit to a design
- What consultants see go wrong on plot ratio calculations
- Get help modeling GFA and preparing your URA submission
- Sources

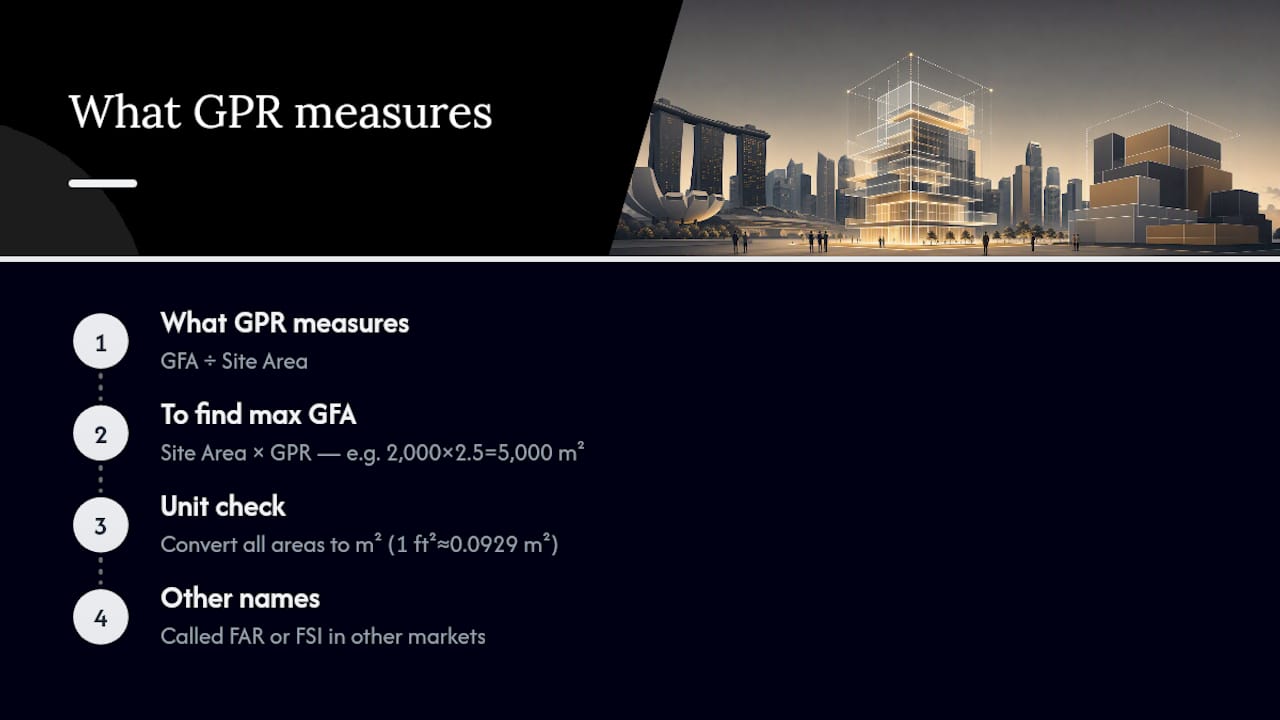

What plot ratio calculation actually measures in Singapore
Gross Plot Ratio is the ratio between a building’s total Gross Floor Area (GFA) and the area of the land it sits on. The formula is straightforward: GPR = GFA ÷ Site Area. Flip it around and you get the number most developers actually want, which is the maximum GFA a parcel can legally hold: Site Area × GPR. A GPR of 2.5 on a 2,000 square meter site permits up to 5,000 square meters of Gross Floor Area.
Internationally, this same ratio goes by other names. Planners in the United States and parts of Europe call it Floor Area Ratio (FAR), while some markets use Floor Space Index (FSI). Singapore’s regulatory documents consistently use “GPR” and “GFA,” so stick to that terminology when reading URA notices or preparing submissions.
Unit consistency is where a surprising number of first-pass calculations go wrong. Site area on your title deed or survey plan may be listed in square meters or square feet, and mixing the two produces a GFA figure that is off by a factor of roughly 10.76. Convert everything to square meters before you multiply, and record the site area you used so a QP or reviewing authority can trace your math later.
How do you calculate plot ratio and maximum GFA?
Getting from a raw land parcel to a realistic buildable figure takes four steps, plus a verification pass before you commit to any design assumption.
- Confirm the legal site area. Pull it from the title deed and cross-check it against the boundary shown on URA’s map layers. Note whether any portion is vested as Drainage Reserve (DR) or Road Reserve (RR), since that changes the denominator you use.
- Find the Master Plan GPR for the parcel. Search the address on URA’s Master Plan portal and read the plot ratio value attached to the land use zone.
- Calculate GFA_max. Multiply site area by GPR, in matching units. Multiplying the site area by the GPR provides the theoretical maximum Gross Floor Area for that parcel.
- Translate GFA into storeys and footprint. Divide the 3,000 m² GFA by a planned floor plate, say 500 m² per storey, and you get roughly six storeys before height limits or setbacks intervene.
Before treating that 3,000 m² figure as final, run through this checklist:
- Is the site area figure from a current survey, not an old title document?
- Have you matched units (m² to m², not ft² to m²)?
- Does the GPR value on the map match the current Master Plan, not an outdated gazette?
- Are there known height caps, conservation overlays, or flight-path restrictions on this parcel?
- Have you set aside an allowance for GFA exclusions before quoting the number to stakeholders?
A plot ratio calculator can run this arithmetic in seconds, but it won’t flag Singapore-specific exemptions or bonuses. Treat it as a scratch pad, not a submission tool.
Why the Master Plan GPR rarely equals your achievable GFA
URA is explicit that the Master Plan plot ratio is an upper bound, and site conditions frequently prevent developers from reaching it in full. Height controls tied to the street block plan can cap a building at a certain number of storeys well before the arithmetic GFA is exhausted, forcing a wider, squatter footprint instead of the tall form the raw ratio might suggest. A high GPR does not automatically mean a tall building; planning context and surrounding built form shape the outcome just as much as the ratio itself.

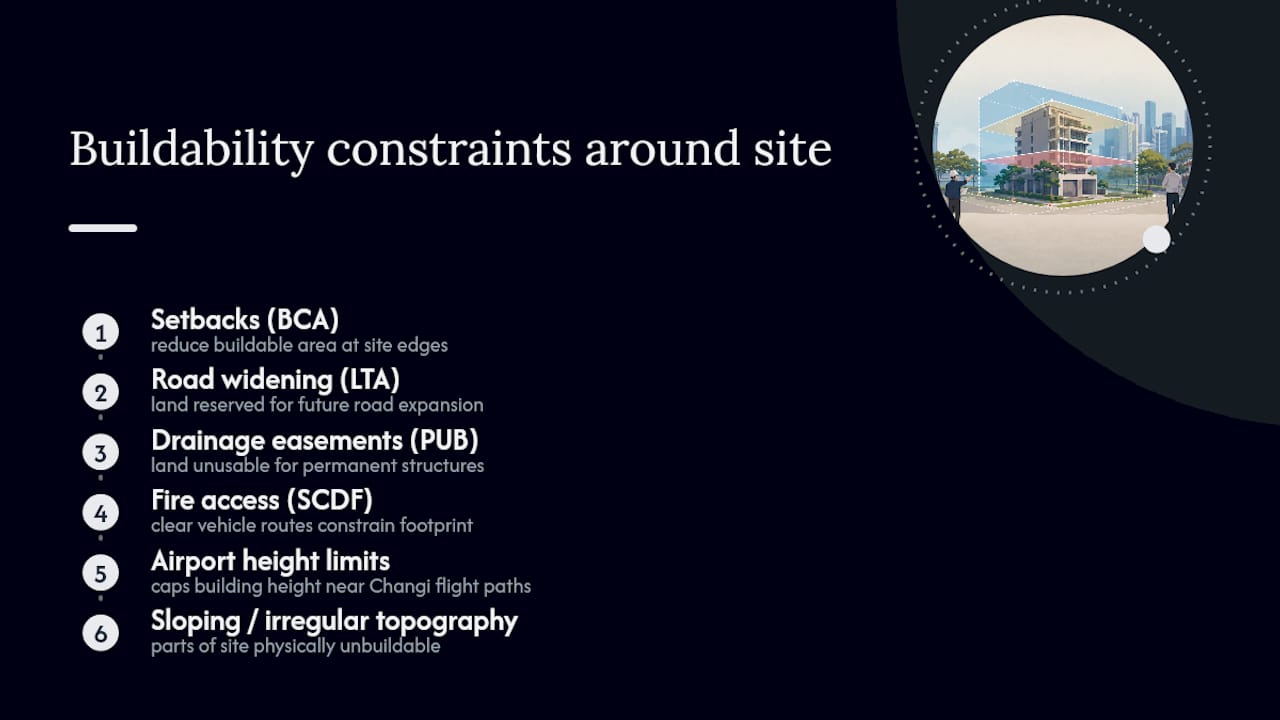

Other agencies layer on their own technical requirements that eat into buildable area. The Building and Construction Authority enforces setback distances from boundaries and roads, LTA can require road widening reserves, PUB may demand drainage easements, and SCDF sets fire engine access and egress requirements that constrain the footprint. Sites near Changi Airport face additional height restrictions tied to flight paths, and sloping or irregular topography can make a portion of the theoretical GFA physically impossible to build without extensive retaining structures.
GFA exclusions that change the real number
URA’s GFA handbook lists specific items excluded from the GFA count, and skipping this step is one of the most common ways a feasibility estimate turns out wrong. A naive calculation using total internal floor area, without applying these carve outs, can overstate or understate what actually counts toward your plot ratio.
Common items to check against the current handbook:
- Certain open-to-sky spaces, such as some balconies and voids, may sit outside the GFA count.
- Service ducts and similar spaces under specified size thresholds are often excluded.
- Some carpark and plant room provisions receive full or partial exemption depending on configuration.
- Certain schemes offer GFA bonuses or concessions, which can work in the opposite direction and add usable floor area beyond the base calculation.
Pro Tip: Never quote a GFA figure to a client or lender based on gross internal area alone. Run it against the current GFA submission checklist first, because a marginal case, like a partially enclosed service yard, can swing the count by hundreds of square meters.
Where to verify official plot ratio data
The URA Master Plan maps and Development Control Handbooks remain the authoritative reference for any plot ratio figure you plan to build a feasibility study on. Check the land use zoning layer for the base GPR, then cross-reference the street block plan, which can impose height and form controls that the zoning layer alone won’t show.
Site area verification matters just as much as the ratio itself. Road and drainage reserve vesting can shrink the area you’re legally allowed to count, so confirm current boundaries against URA’s map layers rather than relying on an older survey. A resource like Haio can also help at the early planning stage if you want a second reference point for site data before committing to detailed design.
Feasibility checklist before you commit to a design
Five checks separate a reliable feasibility estimate from a costly guess:
- Confirm the current URA GPR for the exact parcel, not a neighboring lot.
- Verify the official site area, including any DR or RR portions.
- Check height limits and setback rules against the street block plan.
- Identify which other agencies (BCA, LTA, PUB, SCDF) have jurisdiction over the site.
- Model realistic GFA after applying known exclusions, not the raw multiplication result.
Pro Tip: Include drainage and road reserves in your site area math from day one. Leaving them out until a URA query forces the correction can cost weeks of redesign on a project that already has a committed unit mix.
Engaging a consultant for architectural planning at this stage, rather than after a design is locked, is usually what separates a submission that clears review quickly from one that gets bounced back for revision.
What consultants see go wrong on plot ratio calculations
Unit mismatches between square meters and square feet cause more feasibility errors than any regulatory surprise. The second most common mistake is treating the Master Plan GPR as a fixed entitlement rather than a starting ceiling that height limits and technical exclusions will trim. Early coordination between planning, structural, and M&E teams catches both issues before they get baked into a design brief. Talk to a consultant before you commit to a GFA assumption in a pitch deck or a land bid.
— Aman
Get help modeling GFA and preparing your URA submission
Expert consultants can turn a Master Plan GPR figure into a submission-ready GFA model, so you’re not guessing which exclusions apply or discovering a height conflict after your design is finalized. That’s the practical difference between running the numbers yourself and having a team that submits to URA regularly catch the site-specific issues before they cost you a redesign.
Typical engagements start with a feasibility study that applies the current GFA counting rules to your specific site, followed by structural and M&E coordination once the buildable envelope is confirmed. From there, the consultant manages the authority submission and PE endorsement process directly with URA and BCA. If you’re weighing a site acquisition or need a second check on a plot ratio assumption before you finalize a design brief, explore the engineering consultancy services available for your project and get in touch to scope the feasibility work.
